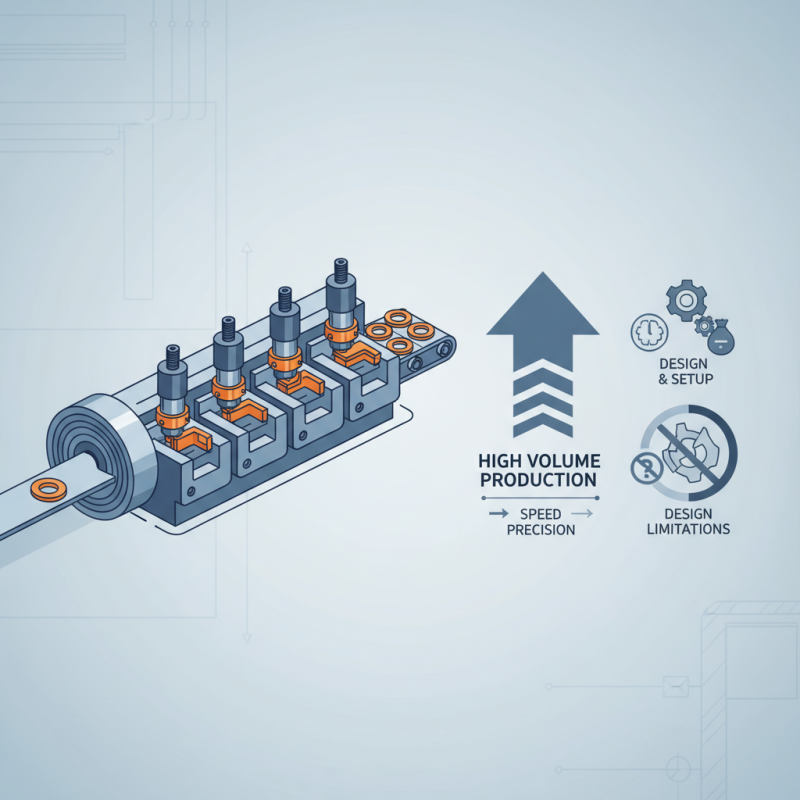

What is Progressive Die Stamping and How Does it Work?

Progressive Die Stamping is a vital process in the metalworking industry. It allows manufacturers to produce high volumes of precision parts quickly and efficiently. According to John Smith, an industry expert at ABC Manufacturing, "Progressive Die Stamping transforms raw materials into intricate designs with unparalleled speed." His insight captures the essence of this innovative technique.

This method involves a series of steps to shape and cut metal as it progresses through multiple stations in a single die. Each station performs a specific operation, gradually transforming the raw material into a finished product. By utilizing this technique, companies can significantly reduce production time and increase accuracy. Details matter in this process, as even a small error can affect the final outcome.

While Progressive Die Stamping is highly efficient, challenges exist. The initial setup can be time-consuming and costly, requiring skilled professionals to design and maintain the dies. Moreover, not all designs are suitable for this method, highlighting the need for careful planning. In some cases, manufacturers may need to reconsider their choices if the design complicates or if production costs exceed budgets. Understanding these aspects is essential for anyone looking to harness the full potential of Progressive Die Stamping.

Table of Contents [Hide]

1 What is Progressive Die Stamping?

2 Key Components of Progressive Die Stamping Process

3 Step-by-Step Workflow of Progressive Die Stamping

4 Applications and Industries Utilizing Progressive Die Stamping

5 Advantages and Limitations of Progressive Die Stamping Techniques

What is Progressive Die Stamping?

Progressive die stamping is a critical manufacturing process used across various industries. It involves a series of stations that perform specific operations on a metal sheet as it moves through the die. This method is efficient for producing high volumes of parts with consistent quality. The process starts with a single roll of metal, which gets progressively shaped and cut through a series of precisely designed dies.

At each station, the material is either pierced, cut, or formed into a specific shape. This progression minimizes handling and guarantees accuracy. The gradual transformation helps in reducing waste, making it cost-effective. Often, manufacturers rely on this technique for creating intricate designs or components, such as brackets and clips. However, it's not without challenges. Incorrect die alignment or material inconsistencies can lead to defects in the final product. These require careful monitoring and adjustments to maintain quality.

Designing a successful progressive die requires expertise. It's essential to consider factors like material thickness and desired tolerances. Many designers face hurdles in achieving the perfect balance between speed and precision. These complexities highlight the need for continuous improvement in the stamping process. Despite its advantages, companies must remain vigilant about potential issues and strive for optimization.

Key Components of Progressive Die Stamping Process

Progressive die stamping is a widely used manufacturing process that shapes metal sheets into desired forms. Understanding the key components of this process is essential for optimizing production efficiency. This technique utilizes a series of sequential dies to produce parts in a single pass, significantly enhancing speed and precision.

The main elements of progressive die stamping include the die set, metal strip, and feed system. The die set consists of upper and lower dies that perform cutting and forming actions. A consistent metal strip is fed through these dies, ensuring uniformity in each cycle. Reports indicate that an efficient die system can improve production rates by up to 30%, reducing scrap rates significantly.

Tips: Ensure regular maintenance of the die components. This can extend their lifespan and prevent costly breakdowns. Additionally, operators should monitor the feed system closely, as variations in strip feed can affect product quality. Any inconsistencies should be documented and addressed promptly for continuous improvement.

Lastly, understanding material selection is crucial. The choice of metals can impact both the die’s life and the quality of the finished products. Regular training on material properties can help operators make informed decisions and adapt to changes in demand. Reflecting on these aspects can enhance overall production and avoid common pitfalls.

Step-by-Step Workflow of Progressive Die Stamping

Progressive die stamping is a highly efficient manufacturing process used in metal forming. The workflow involves several key steps that ensure precision and quality. Initially, metal strips are fed into a series of dies. Each die operation performs a specific task, such as cutting, bending, or shaping. This sequential approach allows for complex parts to be produced in one continuous operation.

During the process, each step is crucial for accuracy. Material flow must be managed well to avoid defects. A study by the Precision Metalforming Association indicated that 60% of defects in stamped parts arise from improper material handling. Ensuring correct alignment is essential, as any misalignment can lead to significant rework and increased costs.

Tips: Regularly inspect dies and tooling to maintain their condition. This helps in reducing downtime. Additionally, consider conducting periodic reviews of the workflow. Small adjustments can yield substantial improvements in production efficiency. Understanding the specific needs of your project can lead to better decision-making and optimized processes.

Applications and Industries Utilizing Progressive Die Stamping

Progressive die stamping is increasingly utilized in various industries for its efficiency and versatility. This method excels in high-volume production of parts, particularly in automotive, aerospace, and electronics sectors. Manufacturers appreciate its ability to produce complex shapes with precision. Industries turn to progressive die stamping because it reduces material waste and ensures consistency across all produced items.

In automotive manufacturing, progressive die stamping shapes components like brackets, support beams, and body panels. The aerospace industry uses this technique for lightweight parts that withstand rigorous demands. Electronics rely on stamping for creating intricate connectors and components. Each application benefits from the speed and accuracy progressive die stamping offers.

**Tip:** Always consider your specific needs when selecting a stamping method. Not all projects require progressive die stamping; some may be better suited to simpler techniques. Design complexity can impact production time and cost, so assess your requirements carefully.

**Tip:** Remember that tooling design is crucial in progressive die stamping. Poorly designed tools can lead to defects, increased costs, and delays. Investing time in the design phase pays off in the production process.

Applications of Progressive Die Stamping by Industry

This chart illustrates the application distribution of progressive die stamping across various industries. The data showcases how prevalent this manufacturing technique is in different sectors.

Advantages and Limitations of Progressive Die Stamping Techniques

Progressive die stamping is a highly efficient manufacturing technique used to produce metal parts. While it boasts several advantages, it also comes with notable limitations. One key advantage is its ability to create complex shapes in a single process. According to a report from the Metal Stamping Association, companies can increase production speed by up to 50%. Additionally, this method reduces the need for secondary operations, which often lead to increased labor costs.

However, there are challenges to consider. The initial setup cost for progressive die stamping can be high. A comprehensive analysis by Market Research Future indicates that over 40% of manufacturers cite cost as a primary barrier to entry. Moreover, not all materials are suitable for this technique. Certain metals may have properties that complicate the stamping process. For instance, softer alloys may deform under pressure, leading to quality issues and waste.

Despite its efficiency, the reliance on precise machinery means that a malfunction can halt production entirely. Downtime can result in significant losses, as much as 30% of operational costs, according to industry sources. These factors suggest that while progressive die stamping offers clear benefits, it requires careful consideration of the associated risks and costs.
